Configuration of Noctule#

Build Settings#

There are two types of build settings:

  • Default Settings for your project
  • Directory Settings for a specific directory

If a directory does not have custom settings, then the project settings are used.

Project Build Settings#

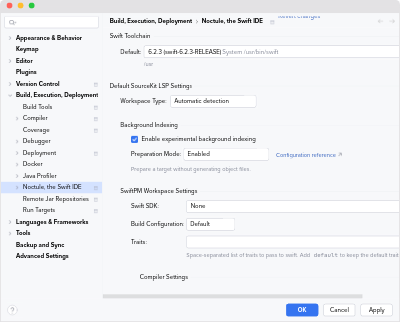

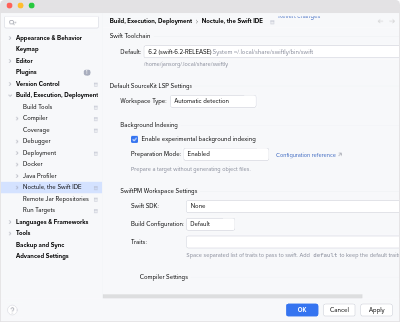

The build settings are available at Preferences → Build, Execution, Deployment → Noctule, the Swift IDE. The directory settings are available in the nested setting Directory Settings.

Swift Toolchain
The Swift toolchain used for the project. It provides most of the editor features (via SourceKit-LSP), builds the project, and serves as the default for run configurations. Directory settings do not allow overriding this setting.
Default SourceKit-LSP Settings
The default settings used for Swift projects. If no custom settings are defined for a directory, then these settings are used as a fallback. Please refer to the explanations of the directory settings to learn more about the available settings.

Directory Build Settings#

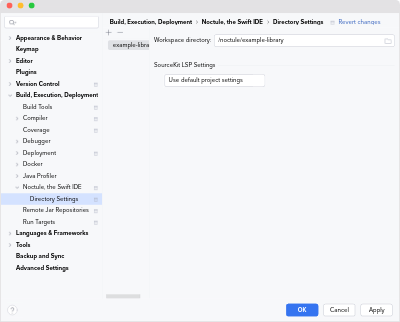

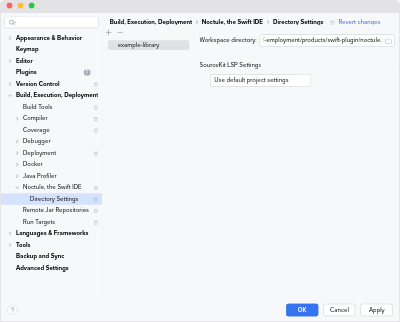

By default, each detected Swift PM project directory is shown at Preferences → Build, Execution, Deployment → Noctule, the Swift IDE → Directory Settings.

The list of directories defines the workspace of the Swift Language Server.

On the left, you can select the directory to configure. On the right, you can configure the build settings for this directory. The settings are synced with the SourceKit configuration file .sourcekit-lsp/config.json inside the directory.

Use default project settings:
Choose whether to use the default project settings or to define custom settings for this directory.

If you choose “Use default project settings”, then .sourcekit-lsp/config.json will be deleted.

If you choose “Apply custom settings”, then .sourcekit-lsp/config.json will be created or updated with the settings defined in the user interface.

Directory Settings Details#

Workspace Type
The workspace type to assume for this directory.
  • Automatic detection: Let SourceKit-LSP detect the workspace type.
  • Build server: Use a build server to build the project. This needs an additional configuration file in the .bsp directory inside the workspace root. Noctule currently does not provide support for build server settings.
  • Compilation database: Use a compilation database to build the project. This needs an additional configuration file compile_commands.json or compile_flags.txt inside the workspace root directory.
  • Swift PM: Use swift to build as a Swift Package Manager project. This needs a Package.swift file inside the workspace root directory.
Background Indexing#
Enable experimental background indexing
Tells SourceKit-LSP to index the project in the background. With Swift 6.1 or later, it’s recommended to enable this and keep the default preparation mode of “Enabled”. Please refer to the documentation if you need more details.
Preparation Mode
How much work SourceKit-LSP does to prepare a target before it indexes it.
  • Enabled: Prepare a target without generating object files. This is the default and does the least work.
  • Without lazy checking: Prepare a target without generating object files, but without lazy type checking and function body skipping. Uses SwiftPM’s --experimental-prepare-for-indexing-no-lazy flag.
  • Build: Build a target to prepare it. The most expensive option, but the one closest to a regular build.
SwiftPM Workspace Settings#
Swift SDK
The Swift SDK to use for this workspace. This is helpful for cross-platform development. The available options are retrieved from the Swift toolchain via swift sdk list. Available SDKs are listed on the Swift website.
Build Configuration
The options Debug and Release allow overriding the default build configuration of the workspace.
Traits
Space-separated traits that are passed to the swift command via the --traits option. If this option is set, then the default traits are ignored unless you add default to this list.
Compiler Settings#

These settings override the defaults of the Swift, C and C++ compilers, and of the linker.

General Settings#

Noctule’s general settings are located at Preferences… → Languages & Frameworks → Swift (Noctule).

Actions on Save#

Enable format on save
Enable this setting to reformat Swift files when you save them to disk with the action File → Save all or its shortcut. Because many projects use external formatters like SwiftFormat or swift format, this quickly brings a file to the expected code style.
These are the same settings as Tools → Actions on Save → Run external Swift formatter.
Formatter
Choose the formatter you would like to run when a file is saved.
  • Swift Toolchain
  • SwiftFormat
  • SwiftLint
Please refer to external code formatters for further details.

SwiftLint#

Configures when SwiftLint is executed and which binary is used.

Status
Controls when SwiftLint is executed in a project.
  • Enable always
    Run SwiftLint for editor diagnostics and format on save, if enabled.
  • Enable only with .swiftlint.yml files
    Execute SwiftLint only if a configuration file is found in the directory of a Swift file or in one of its parent directories.
  • Disable
    Never execute SwiftLint.
Executable
By default, the swiftlint executable is looked up in the configured $PATH. If Noctule is unable to locate it, or if you would like to use a specific version, choose the path to the swiftlint binary.

SwiftFormat#

Configures when SwiftFormat is executed and which binary is used.

Status
Controls when SwiftFormat is executed in a project.
  • Enable always
    Run SwiftFormat for editor diagnostics and format on save, if enabled.
  • Enable only with a .swiftformat file
    Execute SwiftFormat only if a configuration file is found in the directory of a Swift file or in one of its parent directories.
  • Disable
    Never execute SwiftFormat.
Executable
By default, the swiftformat executable is looked up in the configured $PATH. If Noctule is unable to locate it, or if you would like to use a specific version, choose the path to the swiftformat binary.
Configuration file
Specifies the configuration file to use for SwiftFormat, either as an additional configuration or as the only one controlling the formatting.
Swift version
The version of the Swift toolchain passed on the swiftformat command line. By default, it’s the version of the configured Swift toolchain.

Telemetry#

This setting controls whether the optional telemetry of Noctule may be sent. It’s turned off by default. Please refer to Noctule’s privacy policy to learn what is and is not sent when the setting is turned on.

Code Style Settings#

The code style settings for Noctule’s Swift and Objective-C support are located at Preferences… → Editor → Code Style → Swift (Noctule) and Preferences… → Editor → Code Style → Objective-C / C (Noctule).

Color Scheme Settings#

The settings to configure the highlighting of Swift and Objective-C files are found at Preferences… → Editor → Color Scheme → Swift (Noctule) and Preferences… → Editor → Color Scheme → Objective-C / C (Noctule).
